Elemen desain utama Veo3 berfokus pada pengguna dan kinerja. Berdasarkan teknologi digital yang unggul dan inovatif serta kemampuan multi-scan / multi-teknik secara bersamaan, Veo3 benar-benar membantu Anda melakukan inspeksi dengan percaya diri.
Multi-teknik Veo3 memungkinkan inspektur untuk terus melakukan inspeksi seperti biasanya, tanpa perlu mengubah alur kerja mereka saat ini dan dengan melakukan hal tersebut, pengguna dapat memperoleh keuntungan dari resolusi tambahan dan kinerja ukuran TFM sambil menjalankan sistem yang sudah disetujui, tepercaya, dan prosedur yang handal.
Veo3 menawarkan throughput data yang unggul dan kapasitas komputasi yang tak tertandingi. Ini memberikan hasil yang cepat dan akurat menggunakan beamformer PA 32 saluran yang mengesankan yang memberikan SNR luar biasa, menggunakan pemrosesan sinyal digital yang ditingkatkan.
Ukuran file data tidak menjadi masalah bagi Veo3 berkat sistem operasi Linux 64-bit karena ia dapat mengandalkan kapasitas memori SSD 128GB yang cepat sehingga memungkinkan Anda mencatat informasi dalam jumlah besar dalam satu file akuisisi.
Dengan teknologi canggihnya, Veo3 unik dalam memungkinkan kemampuan multi-scan/multi-teknik secara real-time.Tampilan TFM, PA, dan TOFD secara bersamaan kini dapat dilakukan.
Read more
RSflite adalah pilihan optimal untuk inspeksi komposit dan aplikasi pemetaan korosi apa pun. Ketika dipasangkan dengan UTmap dan Wheelprobe, solusi RSflite menonjol karena kecepatannya yang luar biasa dan integrasi yang lancar.
Pengujian Non-Destruktif Ultrasonik (NDT) telah membantu para insinyur memeriksa komposit dan struktur logam di semua industri selama bertahun-tahun. Baik itu laminasi aluminium tradisional, saluran pipa baja, cangkang bejana tekan, atau komposit berbasis serat karbon yang lebih kompleks saat ini, teknologi NDT ultrasonik memiliki kemampuan untuk memeriksa bagian-bagian ini dan membuat peta inspeksi lengkap yang menunjukkan lokasi pemasangan, cacat, dan kehilangan dinding. Laporan integritas komprehensif dapat dibuat, didukung oleh laporan pencitraan dan ekspor file CSV, tinjauan data sederhana dan dapat diulang.
Aktif dengan para pemimpin industri utama selama lebih dari 60 tahun, Sonatest dengan bangga mempersembahkan instrumen pemindaian linier RSflite.

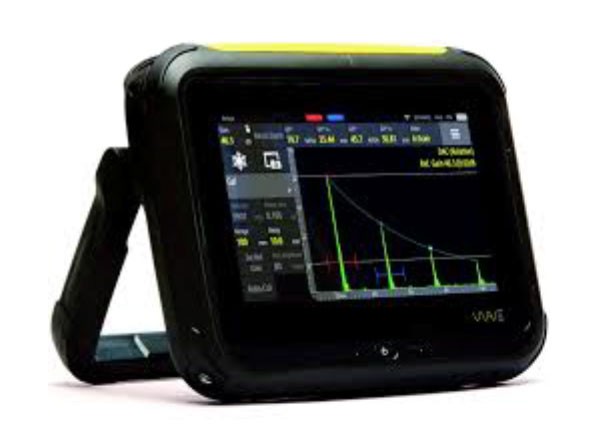

Introducing WAVE by Sonatest. It integrates the latest technologies available in order to create a revolution in the ultrasonic non-destructive testing equipment market. Not only is it innovative, but the customisable interface also optimises the daily workflow, and a unique and embedded interactive scan plan, with ray-tracing capability and simulation tools, consolidates your results.
Its wifi capability allows you to access it anywhere in the field, eases data transfer, application installation and manages calibration date and software version.
The WAVE Interactive Scan Plan has been developed to ease diagnostics on the inspected part. It also to mitigate false calls during the inspection. The scan plan can reproduce complex geometries such as curved surfaces and T-Joints. Combined with a real-time Raytracer, this unique feature facilitates the distinction between a real flaw and a geometrical indication, thus avoiding unnecessary repair.
The Sonatest UTouch Technology allows your device to operate in the same way as a mobile phone. Combined with rugged components and an intelligent algorithm which makes the distinction between couplant and finger, the Sonatest WAVE is the first true industrial touch-screen device on the market.

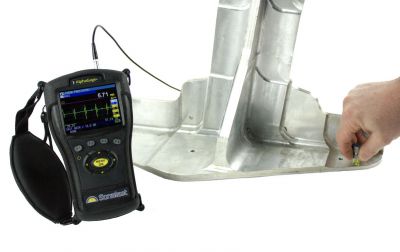

The Sonatest AlphaGage+ instrument uses single element transducers in Pulse-Echo configuration in order to measure to higher accuracy than corrosion gages and meet very strict quality control requirements as in the Aerospace and Automotive industries.
With a wide offering of quality probes, delay line wedges and software options, the Sonatest precision gauge offering is very versatile.
Typical applications include:
When a metal surface is protected by anti-corrosion paint or coating, true wall thickness measurement using Echo-to-Echo function is a key feature and available on all AlphaGage+ models.
Upgradable in the field, the AlphaGage+ is a flexible solution as it can be fully loaded from the start or upgraded anytime later by easily activating its valuable software options when required.
Thickness readings with ID location for corrosion mapping or profile assessment and send readings to Microsoft Excel™ for further asset maintenance evaluation.
Display live A-scan for echo verification and real time control of acoustic range, rectification, gain and blanks or combine the A-Scan with B-Scan view for even more detailed analysis.
Simultaneously display the boiler tube wall thickness as well as the internal oxide scale thickness at their velocities greatly improves the efficiency of investigation to extend tube life.
Download

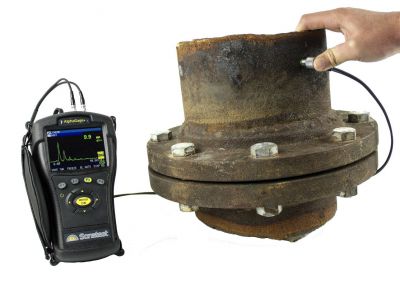

As a primary inspection tool for corrosion assessments, the Sonatest AlphaGage+ instrument uses dual element transducers in a Pitch & Catch configuration to reduce surface problems and to measure accurately the remaining wall thickness of these metal structures subject to corrosion.
This product is a key tool to inspect ageing assets and solve problems in the Oil & Gas or Petrochemicals industries.

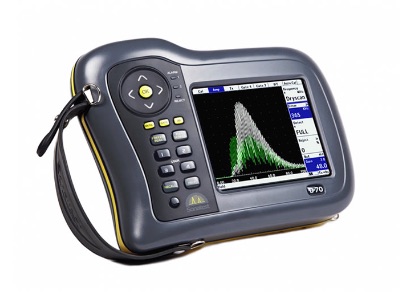

The Masterscan name has always assured the technician of robust instrument construction combined with exceptional performance.
Features can be added and upgrades performed in the working environment, reducing downtime and increasing working flexibility. High levels of near surface resolution, penetrating power (450V pulser - square and spike) and excellent signal to noise ration are key functions in the Masterscan range.
This instrument offers the inspector a fully capable and functional set of tools and software for inspection across all applications. Capabilities include encoded B-Scan, Advanced Thickness logging and Dryscan capability in a portable enclosure.
Typical applications are Weld Fabrication, Corrosion Detection, Composite Inspection, Bond Testing, Forgings and Castings, Power Generation (including EMATS and general UT inspection).
An instrument's ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Masterscan's outstanding battery performance which is up to 18 hours from full charge. The Masterscan's enclosure is constructed using automotive grade impact resistant materials, offering excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55ºC. The Masterscan D-70 has a colour transflective VGA display and maximum readability is achieved through adjustable brightness and the choice of 9 colour palettes, including black-on-white LCD emulation mode.
Weld and pipe inspection are major applications for the Masterscan D-70 and they are equipped with the latest software tools for defect sizing. The use of integrated sizing software reduces analysis time and speeds inspection. Multiple standard sizing techniques are essential for service companies working to different customer standards, especially as service work becomes more international and operators are required to work to different codes.
UT-Lity software provides everything you need to manage your inspection data. The standard version is FREE with every instrument and gives you the ability to view, move and manage Calibrations, A-Scans, B-Scans and Thickness Logs both on the instrument and on your PC. With UT-Lity you can also create customised inspection report templates, cut-n-paste information to other applications and create printable pdf documents.
Sonatest Sitescan Flaw Detectors have always meant highly reliable, technician focused flaw detection equipment and this model builds on that tradition.

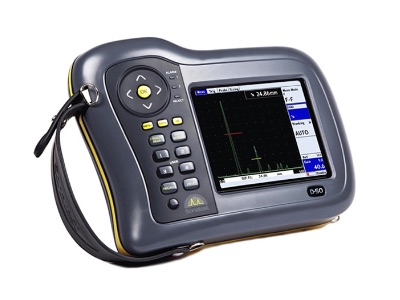

The Sitescan D-50 offers the end user an entry level broadband flaw detector in the popular and portable casing of the established D-Series; with a full VGA display, a 50nS (Spike) 200V, a Pulser 0.5dB gain resolution and an optional rubber boot.
Typical applications are Weld Fabrication, Corrosion Detection, Forgings & Castings and general UT inspection.
An instrument's ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Sitescan D-50's outstanding battery performance, which is up to 18 hours from full charge. The Sitescan D-50's enclosure is constructed using automotive grade impact resistant materials and offers excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55°C. The Sitescan D-50 has a colour transflective VGA display, providing high visibility in any lighting conditions. Maxi,u, readability is achieved through adjustable brightness and the choice of 9 colour palettes, including a black-on-white LCD emulation mode.
Weld an pipe inspection are major applications for the Sitescan D-50 which is equipped with the latest software tools for defect sizing. The use of integrated sizing software reduces analysis time and speeds inspection. Multiple standard sizing techniques are essential for service companies working to different customer standards, especially as service work becomes more international and operators are required to work to different codes.
Ut-Lity Lite software provides everything you need to manage your inspection data. The Standard (Lite) version is FREE with every instrument and give you the ability to view, move and manage Calibrations, A-Scans, B-Scans and Thickness Logs both on the instrument and on your PC. With UT-Lity Lite you can also create customised inspection report templates, cut-n-paste information to other applications and create printable pdf documents.
Go-Scan C-view is a light weight ruggedized real time X-ray imaging system specifically designed for hand-held inspection such, among other, Corrosion Under Insulation (CUI) inspection. It includes a high speed and high resolution CMOS imager and a battery-operated 70kV x-ray tube designed for portable field operation. The video imaging system captures images and displays them on a hand held display in real-time.
ICM’s CPSERIES CRAWLER (Constant Potential Crawler Units) without any compromise on the performance, The CP160CR and CP180CR are, with an outside diameter of 120 mm, a length of just 688 mm and a weight of less than 10 kg, the most compact portable x-ray generators available on the market for crawler. Offering an output range from 40 to 160 kV (180 kV for the CP180CR)/ 0.5 to 2 mA, this crawler X-ray generator fits perfectly to inspect pipelines starting from 6 inches.

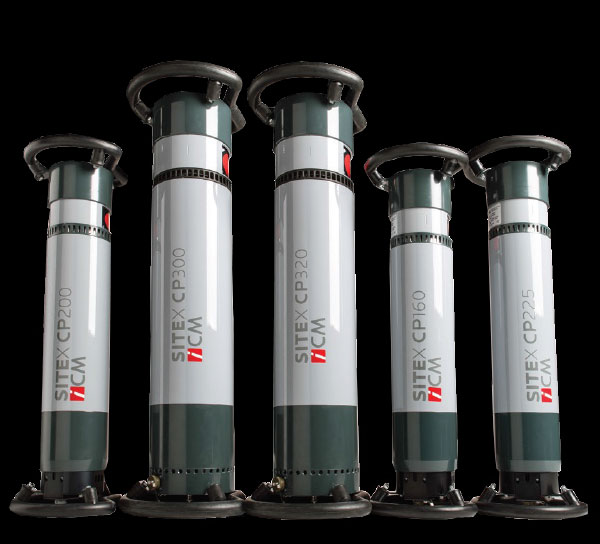

ICM’s CPSERIES (Constant Potential Portable X-ray generators) has been designed to revolutionize the handling and the performances of portable x-ray sets. Despite of having halved the weight of similar portable x-ray generators available on the market (with the same power output), the generators of the SITEX CPSERIES contain a shutter, a laser pointer, a beryllium window,an aluminum filter and two integrated diaphragms (customized sizes available on request). Without compromising ICM’s robustness and reliability, the small size and light weight of the SITEX CPSERIES will radically change the way that you perform your RT inspections, impacting positively in terms of both quality and return on investment (ROI). SITEX CPSERIES provide in different kind of power 160, 200, 225, 300, 320 kV.
The C2503 ‘XS’ X-ray tube for crawlers is unique to the market as it delivers up to 250 kV within an 8’’ diameter.

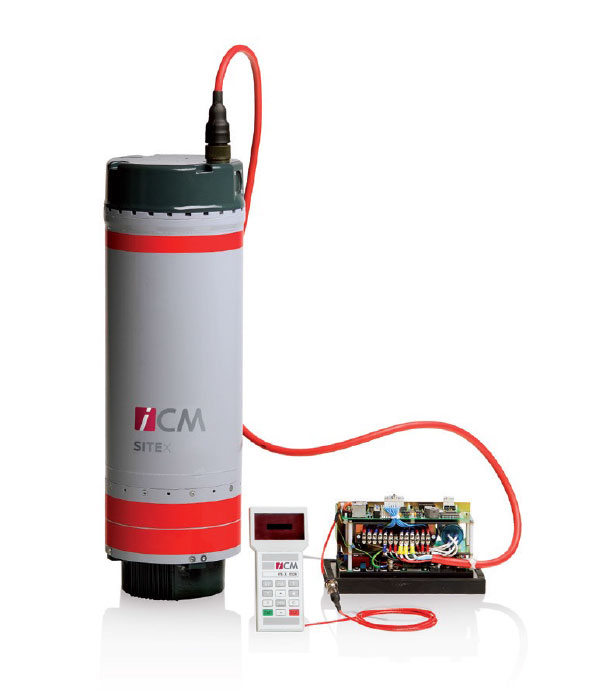

Furthermore, it enables the inspection of pipelines from 10’’ to 32’’. In addition and to provide you with compactness, a special crawler control unit has been developed for the SITEXS. The CCU187 is designed to be mounted directly on the tubehead within the same diameter. In this model provided the following power 200, 225, 250 kV.

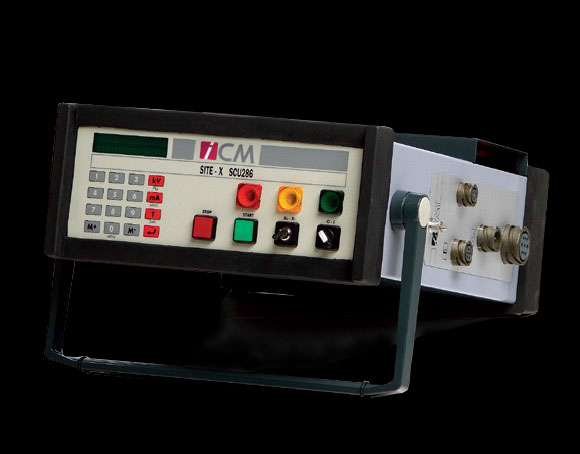

The SITEX and SITEXS panoramic X-ray tubes come equipped with a patented automatic system of beam correction. Perfect homogeneity is ensured thanks to a real time feedback loop adjustment and the EMR value achieved on the films is < 5%. In SITEX model provide as the following X-ray power 180, 200, 225, 250, 300, 320, 360 kV.
These ‘XS’ X-ray generators are in fact reduced versions of the corresponding SITEX units available in 200, 225 and 250 kV versions and provide considerably more compactness.

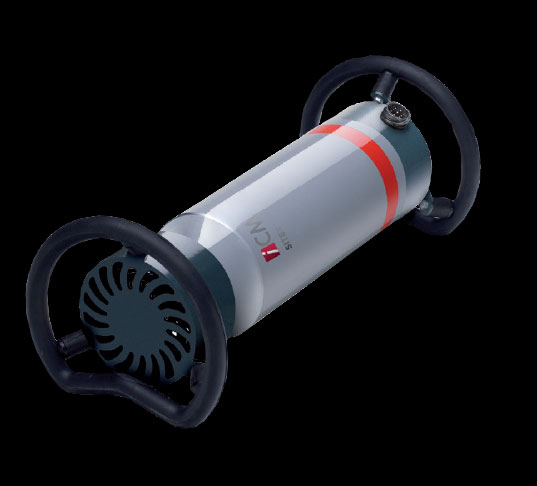

The SITEX directional generators are equipped with an internal ‘carousel’. This contains a lead cap and 4 diaphragms that are calibrated for the films that are used the most. Ensuring protection from accidental on-site losses and weighing in total a mere 1.0 kg, this very practical device replaces approximately 20 kg of fragile and space-consuming accessories. The carousel fitted on the SITEXS provides the same features and is equipped with a laser pointer. To ensure ease of handling, direct access has been arranged on the moving part. In SITEX model provide as the following X-ray power 180, 200, 225, 250, 300, 320, 360 kV.
These ‘XS’ X-ray generators are in fact reduced versions of the corresponding SITEX units available in 200, 225 and 250kV versions and provide considerably more compactness.

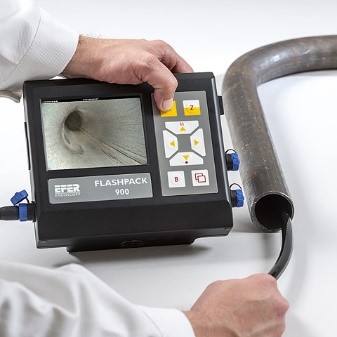

Portable borescope that can be equipped with probe diameters of 4, 6, 8 mm with articulation up to 4x. Can also be used to take measurements with a 3D sizer where the operator can see damage/cracks in 3D.
Special product from EFER with the FPI (Fluorescent Penetrant Inspection) system. This system makes it possible to resolve doubts arising during routine endoscopic inspections raised by suspicious indications. Can also be used to guarantee the absence of residual cracks after blade-blending. In the first use phase, performed with an endoscope under white light, the various chemicals required for FPI are projected onto the area of interest.
.
A COMPLETELY NEW GENERATION OF EDDY CURRENT TESTER
With the ELOTEST M6 you have the most innovative handheld tester in its class in your hands. Whether in a horizontal orientation as a tabletop or vertically as a handheld tester – all flexibility in one device. Whether right-handed or left-handed, all personal habits of the user are taken into account.
The 7″ touchscreen gives you a comprehensive and flexible overview of your test result. With the 3-fold Multi-Touch, you have your finger on the pulse and the test device can be operated in any situation.
Always with you: reference standards directly on the test device. Depending on the test requirements, the reference parts can be exchanged individually.
Handy 2-frequency eddy current tester with large 5.7″ display
Whenever a particularly high resolution is required on the screen, when difficult tasks have to be performed or when both hands are needed and therefore the instrument has to be put down, or when several inspectors want to follow the display at the same time, the ELOTEST M3 is unbeatable. The ELOTEST M3 is mainly used for manual testing of surfaces, bores and hidden structures as well as for measuring conductivities and coating thicknesses.
